FHA636MF Moisture Sensor Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Moisture sensor for determination of the moisture content in wood.

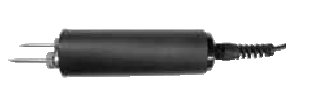

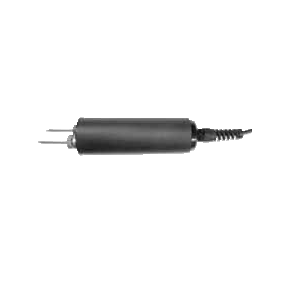

FHA636MF   Moisture Sensor Type

● Moisture sensor for determination of the moisture
content in wood.

● Indirect moisture measurement according to the principle of
conductivity.
● Determination of the moisture content in the material
through the dependence of the electrical resistance on the
moisture.



Types:
FHA636MF Wood moisture probe

Technical Data:
Measuring method: principle of conductivity
Measuring range: 7 to 30 % moisture in wood
Housing: plastic handle
40mm Ø, 130mm long
Measuring tips: stainless steel, uninsulated
3mm Ø, 50mm long
Weight: 260g
Accuracy: ± 2%
Reproducibility: ± 1%
Nominal temperature: 23°C ±2°C
Operating temperature: 0 to +60°C
Storage temperature: -20 to +80°C
Signal output: 0 to 2V
Power supply: 7.5 to +12V
Current consumption max. 10mA
