Sensitive sensor with diamond bearing and precise adjustment for high accuracies.

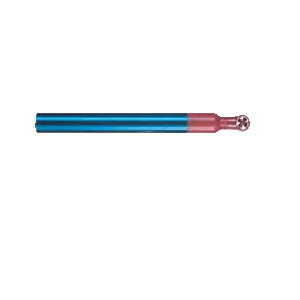

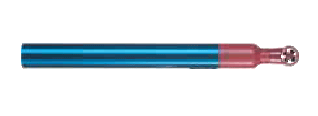

FV A915 S240
Rotating Vanes for Air and Gases Type

● Sensitive sensor with diamond bearing and precise
adjustment for high accuracies.
● The aluminium rotating vanes have stream-lined measuring heads made from plastic material (polysulfone).
● The shafts are, as standard, guided in protected, oiled beryllium-brass bearing sleeves and supported
in tips made from special case-hardened steel.
● Particularly suitable for use in climatology.
● Equipped with snap-on measuring heads and, as a result, very easy to service.
Technical Data:
Accuracy: ±1% of final val.
±3% of measured val.
Max. resolution: 0.01m/s
Nominal temperature: 22°C ±2K
Operative range: -20 to +140°C
Meas. head diameter: 11mm, head replaceable
Inlet opening: starting from 15mm
Sensor length: 165mm
Cable length: 1.5m, ALMEMO® connector

Type:
FVA915S240 Meas. range: 0.6 to 40m/s

Accessories:
ZV9915S220 Spare snap-on head 20 m/s
ZV9915S240 Spare snap-on head 40 m/s
ZV9915VR3 Extension set Ø 15mm,
4 x 255mm
ZV9915TV Telescope extension
Ø 15…24mm, 330/1010mm
