Sensitive sensor with diamond bearing and precise adjustment for high accuracies.

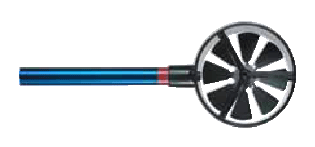

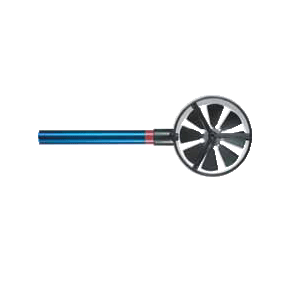

FV A915 SMA1 Rotating Vanes for Air and Gases Type
● Sensitive
sensor with diamond bearing and precise
adjustment for high accuracies. ● The
aluminium rotating vanes have stream-lined measuring heads made from plastic
material (polysulfone). ● The
shafts are, as standard, guided in protected, oiled
beryllium-brass bearing sleeves and supported in tips
made from special case-hardened steel. ● Particularly
suitable for use in climatology. ● Equipped
with snap-on measuring heads and, as a result, very easy to service.
Technical Data:
Accuracy:
±0.5% of fin.v., ±1.5% of m.v.
Max. resolution:
0.01m/s
Nominal temperature:
22°C ±2K
Operative range:
-20 to +140°C
Meas. head diameter:
80mm, head replaceable
Inlet opening:
starting from 108mm
Sensor length:
235mm
Cable length:
1.5m, ALMEMO® connector
Type:
FVA915SMA1
Meas. range: 0.1 to 20m/s
Option: OV9915TE Temperature sensor (NTC)
installed
Accessories:
ZV9915SMA1
Spare snap-on head
ZV9915VR3
Extension set Ø 15mm,4 x 255mm
ZV9915TV
Telescope extension
Ø 15…24mm, 330/1010mm
ZB9605TK
Carry-case
