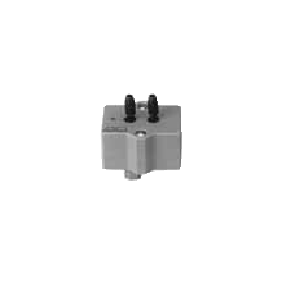

FD A602 M1K Pressure Modules

시중가격 :
판매가격  :
포인트 :
수량 :
  PLUS    MINUS    개
회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Pressure modules with compact design for flow measurements with Pitot tubes.
FD A602 M1K
Pressure Modules for Differential Pressure
and Pitot Tubes Type
Pressure modules with compact design for flow
measurements with Pitot tubes.
Fitting for connecting hose between Pitot tube and pressure module.
Pressure modules can be directly plugged onto the measuring instruments.

When attaching the measuring module other input
sockets will be blocked. If the blocked input sockets need to be used or if the module can be directly installed at the measuring location, an extension cable ZA 9060-VKx (maximum length 5m) can be used.

A
ccessories:
ZA9060AK1 Connecting cable
for pressure measuring module, 0.2m
ZA9060VK2 Extension cable, 2 m long
ZB2295S One set of silicone hoses,
black / colorless, 2 m long
ZB2295SSL Silicone hose, black, per meter
ZB2295SFL Silicone hose, colorless, per meter
Technical Data:
Accuracy (zero-pt adjusted): ±0.5% (typ. 0.2%)
of final value
Nominal temperature: 22°C ±2°C
Temperature drift: max. 1.5% (typ. 0.5%) of final
value
Sensitivity to position: ±5Pa
FDA602M1K pos.-independent
Overload capacity: maximum triple
measuring range
Max. common mode pressure: 300kPa (3bar)
Operating range: -10 to +60°C,
10 to 90% r.H.
non-condensing
Dimensions: 37 x 36 x 22mm
Hose connection: Ø 5mm, 12mm long
Sensor material: aluminium, nylon, silicone,
silica gel
Temperature compensation: effective in range
-50.0 … +700.0°C

Types:
FDA602M1K Meas. ranges: ±1250Pa,
diff. pressure (1 to 40m/s),
position-independent,
meas. variables: m/s, Pa

▒  For precise measurements in m/s the wind tunnel
temperature can be entered for compensation into the
ALMEMO® devices.
