Pressure modules with compact design for flow measurements with Pitot tubes.

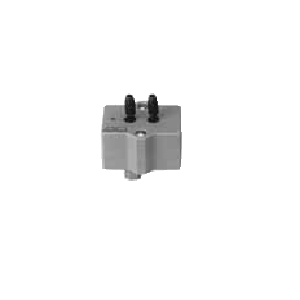

FD A602 M6 Pressure Modules for Differential Pressure
and Pitot Tubes Type
● Pressure
modules with compact design for flow
measurements with Pitot tubes. ● Fitting
for connecting hose between Pitot tube and pressure module. ● Pressure
modules can be directly plugged onto the measuring instruments.
☞ When attaching the measuring module
other input
sockets will be blocked. If the blocked input sockets need to be used or
if the module can be directly installed at the measuring location, an extension
cable ZA 9060-VKx (maximum length 5m) can be used.
Accessories:
ZA9060AK1
Connecting cable
for pressure measuring module, 0.2m
ZA9060VK2
Extension cable, 2 m long
ZB2295S
One set of silicone hoses,
black / colorless, 2 m long
ZB2295SSL
Silicone hose, black, per meter
ZB2295SFL
Silicone hose, colorless, per meter
Technical Data:
Accuracy (zero-pt adjusted):
±0.5% (typ. 0.2%)
of final value
Nominal temperature:
22°C ±2°C
Temperature drift:
max. 1.5% (typ. 0.5%) of final
value
Sensitivity to position:
±5Pa
FDA602M1K pos.-independent
Overload capacity:
maximum triple
measuring range
Max. common mode pressure:
300kPa (3bar)
Operating range:
-10 to +60°C,
10 to 90% r.H.
non-condensing
Dimensions:
37 x 36 x 22mm
Hose connection:
Ø 5mm, 12mm long
Sensor material:
aluminium, nylon, silicone,
silica gel
Temperature compensation:
effective in range
-50.0 … +700.0°C
Types:
FDA602M6
Meas. ranges: ±6800Pa,
diff. pressure (2 to 90m/s),
meas. variables: m/s, Pa
▒ For
precise measurements in m/s the wind tunnel
temperature can be entered for compensation into the
ALMEMO® devices.
