Probe tube with heated miniature thermistor for flow measurement
FV A605 TA  Thermoelectric Flow Sensor Type


● Probe tube with heated miniature thermistor for flow
measurement and precision NTC resistance for measuring the ambient temperature and automatic compensation.
● Evaluation electronics are located in a separate sensor transmitter module.
● High accuracy as a result of integrated temperature
compensation and individual calibration in wind tunnel, with laser Doppler anemometer as reference system.
● Response time only 2s for smoothing the measured value indicated, optionally without smoothing with 100ms response time.
● Suitable for measuring small flow velocities in gaseous substances, particularly for control systems and monitoring.
● Typical applications include comfort index measurements, HEVAC applications, environmental technology, clean room technology and process measuring and control technology.


▒
A special connector cable allows to connect the flow
sensors to all ALMEMO® multi-purpose devices, data
loggers and data acquisition systems. For volume flow
rate measurements the cross section of the ventilating
shaft can be easily entered into ALMEMO® devices. A
problem-free averaging is then possible.

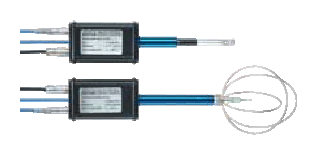

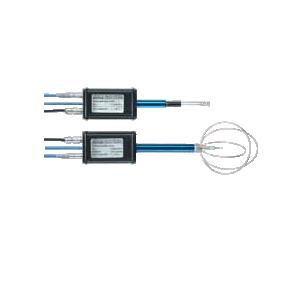

Types (incl. clamping holder
and ALMEMO® connecting cable 1.5m long):
Unidirectional (sensitive in one direction)
with protected measuring tip
FVA605TA1 Measuring range 0 to 1m/s
FVA605TA5 Measuring range 0 to 5m/s
Omnidirectional (direction-independent, symmetrical ball tip) with protecting cage (Ø110mm) including carry-case
FVA605TA1O Measuring range 0 to 1m/s
FVA605TA5O Measuring range 0 to 5m/s
Technical Data:
Electronics Box with Sensor
Measuring range:
   FV A605 TA1(O)
   FV A605 TA5(O)
0.01 to 1m/s
0.15 to 5m/s
Resolution:
   FV A605 TA1(O)
   FV A605 TA5(O)
0.001m/s
0.01m/s
Accuracy:
   FV A605 TA1(O)

   FV A605 TA5(O)

±1.0% of final value and
±1.5% of meas. value
±0.5% of final value
±1.5% of meas. value
Nominal conditions: 22°C, 960hPa
Automatic
temperature compensation:
effective in range 0 to 40°
Temperature influence: ±0.5% of fin. value/°C
Sensor
Head size: Ø 8mm
Shaft: Ø 15mm
Operative range: 0 to 40°C
Angle of attack:
   FV A605 TA1/TA5
   FV A605 TA1O/TA5O
±30°
±180°
Inlet opening:
   FV A605 TAx:
   FV A605 TAxO:
9mm
protecting cage
Sensor length:
   FV A605 TAx:
   FV A605 TAxO
300m
310mm
Sensor cable length: 1.5m
Storage temperature: -30 to +90°C
General Technical Specifications
Measurement medium: dry air or inert
Response time: standard:
smoothened: 1 τ = 2s
option OAA605TAU:
not smoothened: 1 τ = 100ms
Power supply: through ALMEMO® device
(approx. 7… 10V)
Current consumption: approx. 70mA
Output signal: 0 … 1V, linearised,
load resistance min. 10kohms
Housing:
   Dimensions:
   Protection system:
   Weight:
100 x 60 x 35mm (L x W x H)
IP 40 (aluminium housing)
approx. 250g
Operating temperature: 0 to 40
Storage temperature: -30 to 90°C
Air humidity: 0 … 90% r.H., non-condensing
Adjusting reference: laser Doppler wind tunnel,
adjustment at 22°C/approx.
960hPa, (certificate according
to SN EN 45001)
