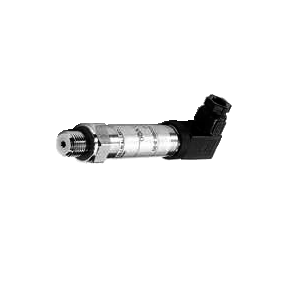

FDA602L Pressure Transducer Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Compact pressure sensors for industrial applications in liquid and gaseous substances.

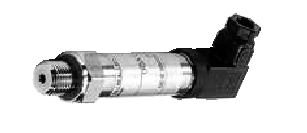

FDA602L Pressure Transducer Type

● Compact pressure sensors for industrial applications
in liquid and gaseous substances.
● Piezo-resistive, flexibly suspended silicone measuring cell in an oil-filled, all-welded special steel enclosure.
● The stable mechanical construction provides a reliable
protection for the measuring cell against the test
substance and immunes it against pressure peaks and vibrations.
● Available with three calibrations.
Relative pressure: pressure related to the environmental press.
Absolute pressure: pressure related to vacuum (0 bar)
Overpressure: pressure related to atm. pressure at
manufacturing (approx. 1bar).

Accessories:
 ZB9060K(L)  Longer cable, please specify length (L)
Types:
including ALMEMO® cable 1.5m long
Measuring ranges relative pressure:
FDA602L3R up to 2.5 bar
FDA602L5R up to 10 bar
Measuring ranges absolute pressure:
FDA602L4A up to 5 bar
FDA602L5A up to 10 bar
Measuring ranges excess pressure:
FDA602L2U up to 25 bar
FDA602L3U up to 50 bar
FDA602L4U up to 100 bar
Technical Data:
Overload : 1.3 times the final value
Output signal: 0.2 … 2.2V
Response time: < 2ms</font>
Category of accuracy:            ±1% of final value
 (linearity + hysteresis + reproducibility)
Linearity: 0.5% max.
Total error range*:
+18 … +22°C:                           1% max. / 0.5% typ.
0 … +18 / +22 … +50°C:           2% max. / 1% typ.
-20 … 0 / +50 … +80°C:           4% max. / 2.5% typ.
* including linearity, hysteresis, zero point and sensitivity,
temperature effects, reproducibility
Nominal conditions: 22°C ± 2K, 10 to 90% rH
non-condensing
Power supply: 6 to 15VDC, <4 mA</font>
Housing: <25 bar: special steel 1.4301<br> >25 bar: special steel 1.4571
Pressure sensor membrane: special steel 1.4435
Operating temperature: -20 to +80°C
Fitting: ext. thread G1/4”, membrane
not flush with front
Pressure medium: compatible with stainless steel
Weight: 75g
Electromagn. compatibility: CE marked: test acc. to IEC
801.2 and 802.2
Protection system: IP 65
Insulation: > 100MΩ / 50VDC
Insulation test: 1 minute at 500VDC
