Compact design allows direct plug-on to measuring instruments.

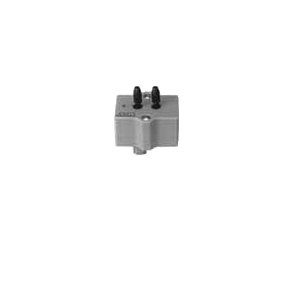

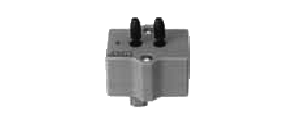

FDA612MA Pressure Module for Barometric Pressure
Type
● Compact design allows
direct plug-on to measuring instruments.
● High measurement
accuracy through piezo-resistive pressure sensor.
● Suitable for
operation with multi-channel measuring instruments and for position-indifferent
measurements at stationary installations when used with extension cable.
Technical Data:
Measuring range:
700 to 1050 mbar
(total range 0 to 1050 mbar)
Accuracy:
±0.5% (typ. 0.1%) of fin. val.
Nominal temperature:
22°C ±3K
Overload capacity:
max. 2-fold measuring range
Air humidity:
10 to 90%
non-condensing
Temperature drift:
max. 1% of final value
(typ. ± 0.6%)
Dimensions:
37 x 36 x 22mm
Hose connection:
Ø 5mm, 12mm long
Sensor material:
aluminium, nylon,
silicone, silica gel
Type:
FDA612MA
Pressure module
for barometric pressure
Accessories:
ZA9060AK1
Connecting cable
for press. measuring module, 0.2m
ZA9060VK2
Extension cable, 2m long
ZA9060VK4
Extension cable, 4m long
