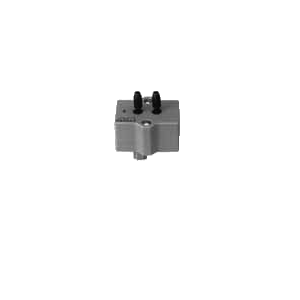

FDA612MR Pressure Module

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Compact design allows direct plug-on to measuring instruments.

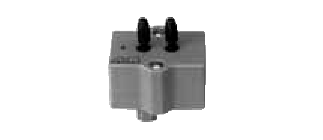

FDA612MR
Pressure Module for Differential Pressure Type

● Compact design allows direct plug-on to measuring instruments.
● High measurement accuracy through piezo-resistive pressure sensor.
● Suitable for operation with multi-channel measuring
instruments and for position-indifferent measurements at
stationary installations when used with extension cable.


Technical Data:
Measuring range: ±1000 mbar diff. pressure
other ranges
Accuracy of measurement
(zero point corrected):
±0.5 % (typ. 0.2) of fin. val.
Overload capacity: max. 3-fold measuring range
Nominal temperature: 22°C ± 2K
Temperature coefficient: ±1.5 % (typ. 0.5) of fin. value
Operating temperature: -10 to +60°C
Air humidity: 10 to 90%rH
(non-condensing)
Dimensions: 37 x 36 x 22mm
Hose connections: 5mm Ø, 12mm long
Sensor material: aluminium, nylon,
silicone, silica gel

Type:
FDA612MR (including one set of silicone hoses, 2 m)
Pressure module for differential pressure

Accessories:
ZA9060AK1 Connecting cable
for press. measuring module, 0.2m
ZA9060VK2 Extension cable, 2m long
ZA9060VK4 Extension cable, 4m long
