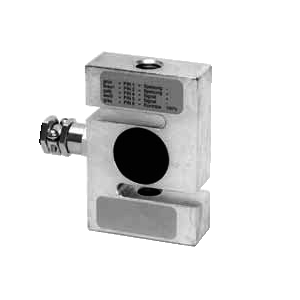

Tension and Compression Sensor Type. Wire strain gauges in four-conductor full-bridge circuit.
K25Tension
and Compression Sensor Type
● Wire strain gauges
in four-conductor full-bridge circuit.
● Control resistance
for final adjustment of the measuring
range.
● All measuring
ranges that are specified in Newton can also be supplied in kg ranges.
Options for all Force Transducers:
OK9000K
Indication of measured values with
ALMEMO® devices in kg
OK9000NK
Indication of measured values with
ALMEMO® devices in N and kg
Accessories:
ZB902512
Knuckle eyes with
external thread M 12 (2 pcs)
(dimensions in mm: D = M 12, E = 16,
F = 32, G = 12, L = 54)
ZB902524
Knuckle eyes with
external thread M 24 x 2 (2 pcs)
(dimensions in mm: D = M 24 x 2, E = 26,
F = 62, G = 25, L = 94)
Technical Data:
Max. load limit:
150% of final value
Maximum dynamic load:
70% of final value
Reference temperature:
23°C
Cable:
3m long, with axial
ALMEMO® connector
Accuracy for tension:
<±0.1% of fin. val.</font>
Accuracy for tension and compression:
<±0.2% of fin. val.</font>
Nominal measuring path:
<0.15mm</font>
Operative range:
-10 to +70°C
Drift error at permanent load:
<0.07% per 30min</font>
Permissible lateral forces:
±60% of fin. val.
Protection system:
up to 1kN: IP 65,
from 2kN: IP 67
Material:
up to 1kN: aluminium
2 to 50kN: stainless
Dimensions in mm
up to 10kN:
A=50, B=75, C=20, D=M12
20kN, 50kN:
A=65, B=85,
C=40, D=M24 x2
Types:
FKA0251
Measuring range 0.02kN 0.05kN, 0.1kN,
0.2kN, 0.5kN, 1kN, 2kN, 5kN or 10kN
please specify
FKA0252
Measuring range 20kN
FKA0255
Measuring range 50kN
▒ All
ALMEMO® devices provide easy push-button
adjustment of no-load and final value.
