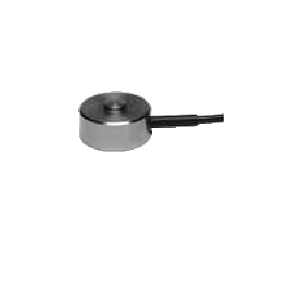

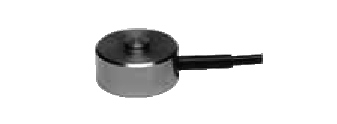

Compression Sensor Type Wire strain gauges in four-conductor full-bridge circuit.
K22
Compression Sensor Type
● Wire strain gauges
in four-conductor full-bridge circuit.
● Control
resistance for final adjustment of the measuring range.
● All measuring
ranges that are specified in Newton can also be supplied in kg ranges.
Technical Data:
Max. load limit:
150% of final value
Maximum dynamic load:
70% of final value
Reference temperature:
23°C
Cable:
radial, 3m long
with ALMEMO® connector
Accuracy:
<±0.5% of final value</font>
Nominal measuring path:
<0.2mm</font>
Operative range:
-10 to +50°C
Drift error at permanent load:
0.1% per 30min
Protection system:
IP 65
Material:
stainless steel
Type:
FKA022
Measuring range
100 N, 200N, 500N, 1000N or 2000N
please specify
▒ All
ALMEMO® devices provide easy push-button
adjustment of no-load and final value.
