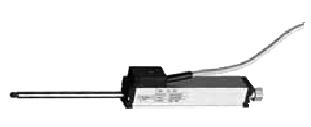

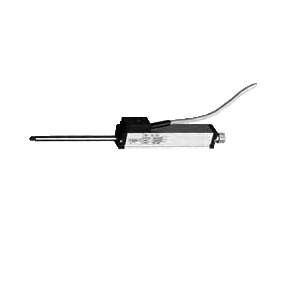

FWAxxxTR Displacement Tracer, Potentiometric Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Resistor and collector paths made from conducting plastic.
FWAxxxTR
Displacement Tracer, Potentiometric Type

● Resistor and collector paths made from conducting plastic.
● Suitable for direct measurements of displacement without a form-locking connection, position detection at stationary measuring objects, tolerance measurements and for continuous contour measurement.
● The pull rod, which is supported on both sides, allows for accepting transverse forces that, for example, occur during a continuous scan of curves or spline parts.
● Rear limit stop is used to provide a simple mechanical
coupling of automatic retraction systems, such as pneumatic cylinders or electromagnets.
● Long life span of 100 x 106 strokes, extraordinary linearity up to ±0.075%, tracer pin running on two exact bearings, DIN compliant standard measuring inserts can be used, shock and vibration resistant.

▒ Pre-adjusted in the factory by storing the correction
values in the ALMEMO® connector.
The precise adjustment can be locally performed by the
user with final measures after the installation.

Option:
OWA071AK Plug connection
(instead of fixed connected cable),
including 3m cable
with screwed round socket
and ALMEMO® connector
Technical Data:
Independent linearity: TR25: ±0.2%; TR50: ±0.15%
TR75: ±0.1%;
TR100: ±0.075%
Housing length (meas. A+1mm): TR25: 63mm;
TR50: 94.4mm;
TR75: 134.4mm;
TR100: 166mm
Mech. stroke (meas. B ±1.5mm): TR25: 30mm; TR50: 55mm
TR75: 80mm;
TR100: 105mm
Total weight (with 2m cable): TR25: 120g; TR50: 150g
TR75: 180g; TR100: 200g
Weight of the pull rod incl. coupling and sliding contact block:
TR25: 25g; TR50: 36g
TR75: 48g; TR100: 57g
Max. operating frequency:
(for most critical application
´probe tip upright´)

TR25: 18Hz; TR50: 14
TR75: 11Hz; TR100: 10Hz
Operating force (horizontal): ≤ 5 N
Reproducibility: 0.002mm
Insulation resistance: ≥ 10MΩ
(500VDC, 1 bar, 2s)
Dielectric strength: ≤ 1mA
(50Hz, 2s, 1 bar, 500VAC)
Max. permissible torque: 140Ncm
Temperature range: -30 to +100°C
Temperature coefficient: typ. 5ppm/°C
Vibrations: 5 to 2000Hz/Amax =
0.75mm/amax = 20g
Shock: 50g/11ms
Life span: > 100 x 106 strokes
Protection system: IP 40

Types:
 Working length/resolution, incl. ALMEMO® cable 2m long
FWA025TR 25mm/0.001mm
FWA050TR 50mm/0.01mm
FWA075TR 75mm/0.01mm
FWA100TR 100mm/0.01mm
