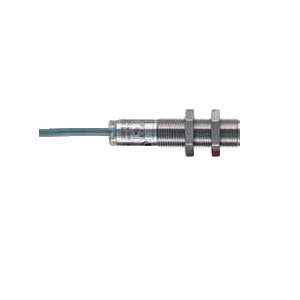

FUA9192 Rotational Speed Sensor Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

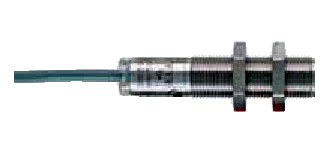

Rotational Speed Sensor Type, Optical probe for measurements of rotational speed
FUA9192 Rotational Speed Sensor Type

● Optical probe for measurements of rotational speed,
designed as retroreflective photoelectric sensor for
photoelectric detection of rotational speeds or events.
● For evaluation of the pulses, the tachometer probe is
equipped with a specific frequency meter module that
calculates the number of revolutions per minute from the time period between two pulses. A stable read-out is achieved by averaging over a minimum of 500 ms.
● Easy application:
A reflective adhesive tape is attached to the moving part and the probe is aligned with it. For function control purposes a yellow signal lamp at the rear side of the probe will be on when the reflective adhesive tape is recognised.
● To increase the operation reliability the sensitivity
can be adjusted through a potentiometer.

Note:
1. Further accessories for measuring rotational speeds
ALMEMO® adapter cables for frequency, pulses and rotational speed
2. Measurement of the rotational speed of a current meter disc

Types:
FUA9192 For rotational speeds up to 30000rpm max.,incl. 5 reflective adhesive tapes
Connecting cable 2m long with ALMEMO® connector

Accessories:
ZA9060VK1 Extension cable, 1 meter long
ZA9060VK2 Extension cable, 2 meters long
Technical Data:
Measuring range: 8 to 30000rpm (maximum)
Bright-up pulse time: > 1ms
Resolution: 1rpm
Accuracy: up to 15000rpm:
± 0.02% of m.v. ± 1 digit
up to 30000rpm:
± 0.05% of m.v. ± 1 digit
Detection range: 20 to 200mm
(depending on the reflector)
Sensitivity: adjustable with
potentiometers
Detectable object: opaque or reflector
Distance hysteresis: ≤ 10%
Indication of switching status: LED yellow
Type of light: red light 660nm
Limit for foreign light: sun light: ≤ 20000lux
halogen light: ≤ 5000lux
Ambient/storage temperature: -25/-40°C to +55/+70°C
Protection system: IP 67 (accord. to EN 60529)
Optics: 2-lens system PC
Permissible shock load: b ≤ 30g, T ≤ 1ms
Permissible vibrational load: f ≤ 55Hz, a ≤ 1mm
No-load current: ≤ 20mA
Supply voltage: > 8.5VDC via instrument,
mains adapter recommended
Material: housing: brass, nickel plated,
lens opening: PMMA
Dimensions: diameter: M12 x 1mm,
length: 55mm
Weight: 15g
Meets standards: EN 60 947-5-2
