Sensitive sensor with diamond bearing and precise adjustment for high accuracies.

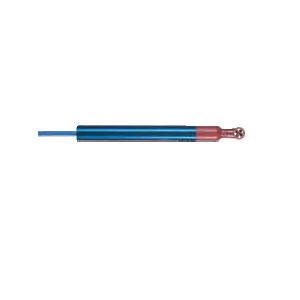

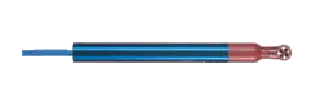

FVA915WM1 Rotating Vane for Flow Measurements in
Water Type
● Sensitive sensor
with diamond bearing and precise adjustment for high accuracies.
● The aluminium
rotating vanes have stream-lined measuring heads made from plastic material
(polysulfone).
● The shafts
are, as standard, guided in protected, oiled
beryllium-brass bearing sleeves and supported in tips made from special
case-hardened steel.
● Particularly
suitable for control measurements.
● Equipped with
snap-on measuring heads and, as a result, very easy to service.
Technical Data:
Measuring range:
0.04 to 5m/s
Accuracy:
±0.4% of fin.val., ±3% of m.v.
Max. resolution:
0.01m/s
Nominal conditions:
22°C ±2K/water
Operative range:
0 to +80°C
Cable length:
5m, ALMEMO® connector
Type:
FVA915WM1
Measuring range: 0.04 to 5m/s
Accessories: ZV9915WM1 Spare snap-on head
