FVA915VTH Axial turbine flowmeter

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

For measuring the volume flow rate or for dosing tasks with small flow rates.
FVA915VTH
Axial turbine flowmeter for liquids Type


●
For measuring the volume flow rate or for dosing tasks
with small flow rates.
● Extraordinary compact design.
● Wide, usable measuring range.
● Various options for operation:
Cooling water flow, medical technology, plastics industry,
solar systems, baker's equipment, machine tools, catering
equipment, photographic laboratory equipment, dispensers, dosing equipment, cooling equipment, heating applications, calorimetry.


Technical Data:
Nominal diameter DN 15
Measuring range 2 to 40 l / min
continuous load max. 20 l/min
Measuring accuracy ±1% of measured value
Reproducibility : ± 0,2 %
Signal output from 0.3 l/min
maximum size of particles
in medium
0.5 mm
maximum temperature
of medium
85°C
Nominal pressure PN10
Process connection G ¾" external thread and
union nuts
Pressure loss in bar Δp = 0.00145 x Q2 (Q in l/min)
approx. 0.6 bar at 20 l / min
approx. 2.3 bar at 40 l / min
Protection system IP 54
Output signal
Pulse rate / K factor
Resolution
855 pulses / liter
1.2 ml / pulse
Signal form rectangular signal, NPN,
open collector
Measuring transducer Hall sensor
Supply voltage 4,5 ... 24 V DC
(from ALMEMO® device)
Electrical connection PVC cable, shielded
(Tmax = 70°C)
with ALMEMO® connector
Materials
pipe section
    FV A915 VTH M
    FV A915 VTH K
brass
plastic PPONoryl GFN3
Flat gasket NBR
Turbine cage PEI ULTEM
Rotating vane PEI ULTEM
Rotor complements hard ferrite magnets
Axle / bearing axle Arcap AP1D
with hard metal pins
in saphire bearings
Bearing support Arcap AP1D
Sensor PPO Noryl GFN3
O-ring NBR
Knurled swivel nut* PA GF 30
* not coming into contact with the medium

Types:
incl. connecting cable, 6m long with ALMEMO® connector

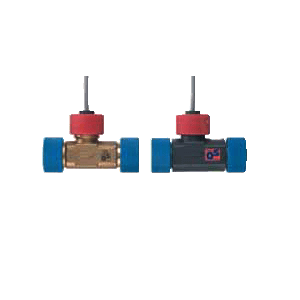

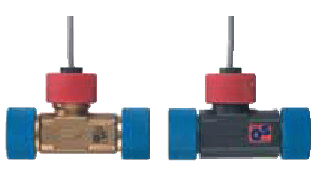

FVA915VTHK Turbine body made of plastic
FVA915VTHM Turbine body made of brass
