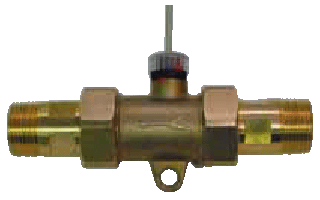

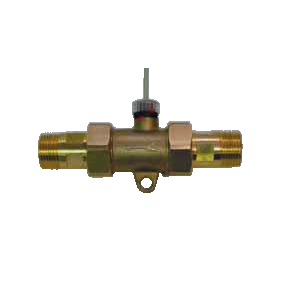

FVA915VTH25 Axial turbine flowmeter

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

For measuring the volume flow rate or for dosing tasks with large flow rates
FVA915VTH25
Axial turbine flowmeter for liquids Type

● For measuring the volume flow rate or for dosing tasks with large flow rates
● Compact design
● Wide useful operating range
● variety of applications :
cooling water flow, medical technology, plastics industry,
solar systems, baker’s equipment, machine tools,
catering equipment, photographic laboratory equipment,
dispensers, dosing equipment, cooling equipment,
heating applications, calorimetry

Technical Data:
Nominal diameter DN 25
Measuring range 4 to 160 l/min
Continuous load max. 80 l/min
Measuring accuracy ±3% of measured value
Reproducibility : ±0.5%
Signal output from < 1 l/min</font>
maximum size of particles
in medium
0.5 mm
maximum temperature
of medium
85°C
Nominal pressure PN10 PN10
Process connection
    FVA915VTH25M


    FVA915VTH25K

G 1¼" external thread
including adapter for G 1"
(absolutely necessary)
G 1¼" external thread
without adapter
Pressure loss approx. 0.1 bar at 80 l / min
approx. 0.45 bar at 160 l / min
Protection system IP 54
Output signal
    Pulse rate / K factor
    Resolution

67 pulses / liter
15 ml / pulse
Signal form NPN, open collector
Measuring transducer Hall sensor
Supply voltage 4,5 ... 24 V DC
(from ALMEMO® device)
Electrical connection PVC cable, shielded
(Tmax = 75°C)
with ALMEMO® connector
Materials
Pipe section
    FV A915 VTH25M
    FV A915 VTH25K
brass
plastic PP
Flat gasket Centelen
Turbine cage PA Grivory HTV4X1
Rotation vane PP
Rotor complements permanent magnets,
Recona 28nickel-plated
Axle / bearing special steel 1.4436 /
saphire, PA
Sensor socket POM Delin 100P
O-ring 72 NBR 872

Types:
 incl. connecting cable, 6 m long, with ALMEMO® connector
FVA915VTH25M Turbine body made of brass
FVA915VTH25K Turbine body made of plastic
