Perfectly suitable for use in maintenance and monitoring of electrical systems without interrupting their current supply.

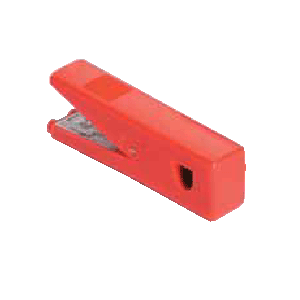

FEA6042 Split-Core Type Transformer for AC Currents
Type
● Perfectly suitable for use in maintenance and monitoring
of electrical systems without interrupting
their current supply.
● Application
oriented design, particularly suitable for measurement in dense wiring.
● Ideal for
non-contact control measurements with ALMEMO® hand-held devices, e.g. for
fault currents
or at devices with low current consumption.
Technical Data:
Measuring range:
1A to 150A AC
(the higher value corresponds to120% of the max. nominal value)
Accuracy of meas. at 50Hz:
15 to 150A: ± 3%
5 to 15A: 0 to ?6%
1 to 5A: 0 to ?(10% + 200mA)
Encompassing capacity:
cable Ø 12mm
Transformation ratio:
100mVDC/1A AC
Output signal:
15VDC
Operating frequency:
50 to 400Hz
Safety standards:
IEC 414
Overvoltage protection:
yes
Dimensions:
115 x 35 x 22mm
Weight:
approx. 100g
Nominal conditions:
25°C ±3°C/1013mbar
Operating temperature:
-10 to +55°C
Relative humidity:
0% to 90% at 40°C max.
Storage temperature:
-40 to +70°C
Connecting cable:
1.5m long
with banana plugs and
ALMEMO® connector
Types:
FEA6042
Single-range split-core type transformer
with integrated rectifying for small AC currents incl. ALMEMO® connecting
cable (±26VDC)
