Perfectly suitable for use in maintenance and monitoring of electrical systems without interrupting their current supply.

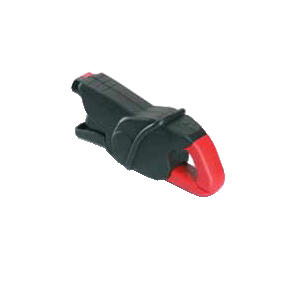

FEA604MN Split-Core Type Transformer for AC Currents
Type
● Perfectly suitable
for use in maintenance and monitoring of electrical systems without interrupting
their current supply.
● Asymmetric
shape of the jaw of tongs, particularly suitable for encompassing cables
and rails.
● With polarity
indicator for power measurements.
● Ideal for
non-contact control measurements with ALMEMO® handheld devices, e.g. at
low power systems.
Technical Data:
Measuring range:
0.5A to 200A AC
(the higher value corresponds to
120% of the max. nominal value)
Accuracy of meas. at 50Hz:
± 3% of meas. val. ±0.5A
Encompassing capacity:
cable Ø 20mm
rail 20 x 5mm
Transformation ratio:
100mVDC/1A AC
Output signal:
20VDC
Operating frequency:
40Hz to 10kHz
Safety standards:
IEC 1010-1
Overvoltage protection:
category III
Dimensions:
135 x 50 x 30mm
Weight:
approx. 180g
Nominal conditions:
25°C ±3°C/1013mbar
Operating temperature:
-10 to +55°C
Relative humidity:
0% to 90% at 40°C max.
Storage temperature:
-40 to +70°C
Connecting cable:
1.5 m long
with banana plugs and
ALMEMO® connector
Types:
FEA604MN
Single-range split-core type transformer
with integrated rectifying for small AC currents incl. ALMEMO® connecting
cable (±26VDC)
