Perfectly suitable for use in maintenance and monitoring of electrical systems without interrupting their current supply.

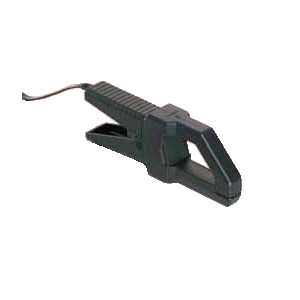

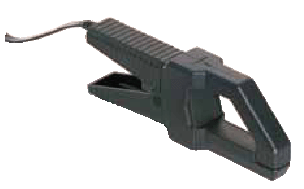

FEA6044N Split-Core Type Transformer for AC Currents
Type
● Perfectly suitable
for use in maintenance and monitoring of electrical systems without interrupting
their current supply.
● Asymmetric
shape of the jaw of tongs, particularly suitable for encompassing cables
and rails.
● With polarity
indicator for power measurements.
● Ideal for
non-contact control measurements with ALMEMO® handheld devices, e.g. at
low power systems.
Technical Data:
Measuring range:
2A to 500A AC
(the higher value corresponds to 120% of the max. nominal value)
Accuracy of meas. at 50Hz:
± 3% of meas. val. ±0.5A
Encompassing capacity:
cable Ø 30mm
rail 30 x 63mm
Transformation ratio:
1mVDC/1A AC
Output signal:
0.5VDC
Operating frequency:
40Hz to 1kHz
Safety standards:
IEC 348, IEC 1010-2-032
Overvoltage protection:
no
Dimensions:
215 x 66 x 34mm
Weight:
approx. 420g
Nominal conditions:
25°C ±3°C/1013mbar
Operating temperature:
-10 to +55°C
Relative humidity:
0% to 90% at 40°C max.
Storage temperature:
-40 to +70°C
Connecting cable:
1.5m long
with banana plugs and
ALMEMO® connector
Types:
FEA6044N
Single-range split-core type transformer
with integrated rectifying for small and medium AC currents incl.
ALMEMO® connecting cable (±2.6VDC)
