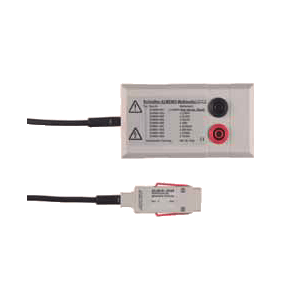

ALMEMO® Measuring Modules for DC Voltage and DC Current Type
ZA9900AB/ZA9901AB ALMEMO® Measuring Modules for DC Voltage
and DC Current Type
Technical
Data:
Accuracy:
0.1% of fin. val. ±2
digits
Sampling rate:
1kHz
Resolution:
12bit, ±2048 digits
Meas. period/transient time:
0.1s
Measuring cycle, maximum:
14h
Electrical isolation:
1kV permanent, 4kV for 1s
Housing:
polystyrene,
dimensions L100 x W54 x H31mm
Sockets:
touchproof, Ø 4mm
Operating voltage:
6 … 14V
through ALMEMO® device
Current consumption:
< 40mA<br>
(connector and module)
● Acquisition of the momentary, maximum, minimum and
average value, plus transferring data of each measuring point scan to the
ALMEMO® device.
● DC voltage
or DC current signal are scanned with 1kHz.
● Pure digital
data transmission to the measuring instrument.
● Connector
sockets electrically isolated and overvoltageprotected.
☞ The measuring module is not
designed for operation
with selector switch board ES5590MF.
Types (incl. touchproof connecting
cable):
DC Voltage:
Order No.
Measuring range
Resolution
Overload
Internal resistance
ZA9900AB2
±2.000 V
0.001V
400 V
800 kΩ
ZA9900AB3
±20.00 V
0.01V
500 V
1 MΩ
ZA9900AB4
±200.0 V
0.1V
500 V
1 MΩ
ZA9900AB5
±400 V
1V
1000 V
4 MΩ
DC Current:
Order No.
Measuring range
Resolution
Overload
Internal resistance
ZA9901AB1
±20.00 mA
0.01mA
0.1 A*
10 Ω
ZA9901AB2
±200.0 mA
0.1mA
1 A*
1 Ω
ZA9901AB3
±2.000 A
0.001A
10 A*
0.1 Ω
ZA9901AB4
±10.00 A
0.01A
20 A*
0.01 Ω
*Without
fuse, overload condition only up to 1 minute maximum
DC via external shunt:
ZA9900AB1
±200.0 mV
0.1mV
40 V
50 kΩ
