ZA9903AB/ZA9904AB True/Effective Measuring Modules

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

True/Effective Measuring Modules for AC Voltages and AC Current Type

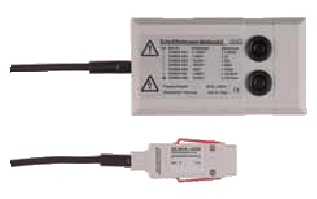

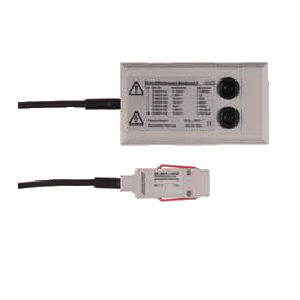

ZA9903AB/ZA9904AB
True/Effective Measuring Modules for AC Voltages and AC Current Type


● Independent, full digital acquisition of the true/effective values of an AC variable.
● Measuring signals with any course of a curve are digitised with 1kHz.
● Pure digital data transmission to the measuring instrument.
● Acquisition of the frequency through a second measuring channel.
● Connector sockets electrically isolated and overvoltageprotected.

☞ The measuring module is not designed for operation with selector switch board ES5590MF.
Technical Data:
TRMS
Accuracy: 0.1% of fin. val. ± 2 digits
Sampling rate: 1kHz
Resolution: 12 bit, ± 2048 digits for Uss
Frequency range: 20.0 … 250Hz
Meas. period/transient time: 0.5s
Frequency
Accuracy: ± 0.1Hz
Sampling rate: 1kHZ
Resolution: 0.1Hz
Sensitivity: 10% of final value
Frequency range: 20.0 … 250Hz
Meas. period/transient time: 0.5s

Electrical isolation: 1kV permanent, 5kV for 1s
Housing: polystyrene,
dim. L 100 x W 54 x H 31mm
Sockets: touchproof, Ø 4mm
Operating voltage: 6 … 14V
through ALMEMO® device
Current consumption: < 40mA<br> (connector and module)

Types (incl. touchproof connecting cable):

AC Voltage
Order No. Meas. range Resolution Peak Overload Internal resistance
ZA9903AB1 130.0mVrms ¹) 0.1mV 0.2V 400V 0.5MΩ
ZA9903AB2 1.300Vrms 1mV 2V 400V 0.8MΩ
ZA9903AB3 13.00Vrms 10mV 20V 500V 1MΩ
ZA9903AB4 130.0Vrms 0.1V 200V 500V 1MΩ
ZA9903AB5 400Vrms 1V 1000V 1000V 4MΩ
¹) When using the measuring module for the purposes of current measurement with an external shunt, the shunt must be looped into the neutral conductor (not into the phase).

AC Current
Order No. Meas. range Resolution Peak Overload Internal resistance
ZA9904AB1 1.000Arms 1mA 2A 10A²) 0.10Ω
ZA9904AB2 10.00Arms 10mA 20A 20A²) 0.01Ω
²)Without fuse, overload condition only up to 1 minute maximum
