Self-calibrating optical probe heads for the scanning of supply meters.
FUA919SZ
Optical Probes for Current Meters Type

● Self-calibrating optical probe heads for the
scanning of supply meters.
● Existing energy meters that do not have a pulse output can be included in the energy management at low cost and with no conversion required. Furthermore, the energyproportional pulses of electronic meters can be registered.
● Suitable for various fields of application, e.g. industrial systems, large houses with several flats, shopping centres, trade fairs and exhibitions, holiday and camping resorts, hotel and apartment installations, municipalities and authorities.
Technical Data:
Sensor housing: 40 x 20 x 20 (W x H x D)
Protection system: IP 50
Material: plastic, black
Operating voltage: 5.5 … 30VDC
Max. current consumption: 5mA
Function control: through LED
Signal output: transistor open collector PNP
(1k protective resistor)
Max. sampling rate: 3 pulses/s
Temperature range: -20 … 60°C
Connecting cable: 3m long
with ALMEMO® connector
Max. distance
from meas. instrument:

15m

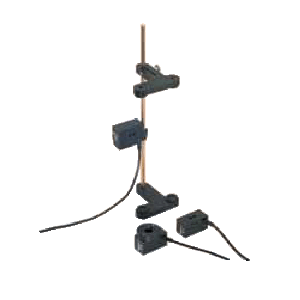

Types:
FUA919SZB Optical probe head with removable adhesive tape
FUA919SZC Optical probe head with magnetic mounting (Ø32 x 8mm) (only for meters with pulse LED) for measurements in test laboratories and for portable operation
FUA919SZD Optical probe head with adjustable stand (max. span 400mm) and suction cup fixture for mobile
operation at supply meters
