Climate printer or climate data logger for room monitoringwith mains or battery operation.

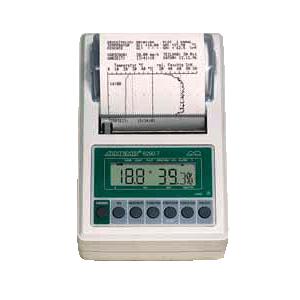

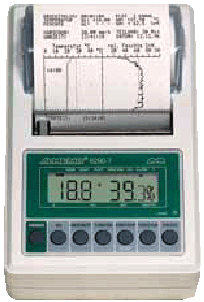

ALMEMO® 6290-7K Climate Printer and
Data Logger with Ring Memory
Technical Features: ●
Climate printer or climate data logger for room monitoringwith
mains or battery operation.
● Various combinations
of measuring ranges can be set for temperature and humidity.
● One measuring
input, two measuring channels can be scanned.
● Two output
sockets for analog output, digital
interface, trigger input, alarm contacts.
● Easy-to-read
8-digit LCD double display.
● Key switch
for protection against unauthorised access.
● Data Recording:
2 diagrams side-by-side, optionally 2 lines in a diagram or list printout,
time, date, limit values, paper feed in mm or print cycle, start/stop of
measurement via keypad, 25-digit record headline, programmable via software
and data cable. Data cable allows for PC online measurements.
● Data Logger
Functions:
All cyclic acquired data will be stored and can be
subsequently provided, completely or in extracts, as output in different
formats. Plots with free selectable parameters, list and alarm value printout,
data transfer to PC are available.
The function ´Daily Printout´, triggered by the changing of the date, can
be selected instead of the cyclic printout.
