FVA615-2 Wind Velocity Sensor Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Wind Velocity Sensor Type. Wind sensor for measuring the horizontal wind velocity.

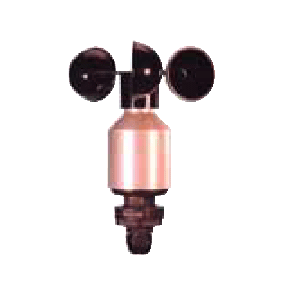

FVA615-2 Wind Velocity Sensor Type


● Wind sensor for measuring the horizontal wind velocity.
● Cup-type made from stable plastic, electronics in weatherresistant aluminium housing, rotating mechanics guided in high-quality ball bearings.
● A special labyrinth reliably protects without friction and
guards against water penetrating into the housing.
● With electronically controlled heating for winter operation to prevent ball bearings and external rotational parts from freezing.
Technical Data:
Measuring range: 0.5 to 50m/s
Accuracy: ±0.5m/s ±3% of meas. value
Resolution: 0.1m/s
Measuring principle: optoelectronically (slotted disk)
Sensor power supply: 9-30VDC
through ALMEMO® device
Heating: 24VAC/DC max. 20W
Operative range: -30 to +70 °C, with heating
Cable: 12m long, LiYCY 6 x 0.25mm2
Connection: Adapter cable with ALMEMO®
connector including supply cable
for heating
(length 1.5 m, free ends)
A mains supply unit must be
provided by the user on site.
Installation: e.g. pole tube with holding thread
PG21 / drilling 29mm Ø
Weight: 750g

Type:
FVA6152 Cup-type anemometer including ALMEMO® connector (0-2V) with 12m cable

Accessories:
ZB9060K(L) Longer cable, please specify length (L)
