Wind direction sensor for measuring the horizontal wind direction.

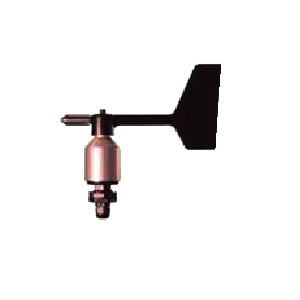

FVA614 Wind Direction Sensor Type


● Wind direction sensor for measuring the horizontal wind direction.
● Wind vane made from stable plastic, electronics in weatherresistant aluminium housing, rotating mechanics guided in high-quality ball bearings.
● A special labyrinth reliably protects without friction and guards against water penetrating into the housing.
● With electronically controlled heating for winter operation to prevent ball bearings and external rotational parts from freezing.
Technical Data:
Measuring range: 0 to 360°
Accuracy: ±5°
Resolution: 11.25° (5 bit Gray code)
Measuring principle: optoelectronically (slotted disk)
Sensor power supply: 9?30VDC
through ALMEMO® device
Heating: 24VAC/DC max. 20W
Operative range: -30 to +70 °C, with heating
Cable: 12m long, LiYCY 6 x 0.25mm2
Connection: Adapter cable with ALMEMO®
connector including supply cable
for heating
(length 1.5 m, free ends)
A mains supply unit must be
provided by the user on site.
Installation: e.g. pole tube with holding thread
PG21 / drilling 29mm Ø
Weight: 1100g

Type:
FVA614 Wind vane including ALMEMO® connector
(0?2V) with 12m cable

Accessories:
ZB9060K(L) Longer cable, please specify length (L)
