Rainfall sensor with sieve bar for protection against insects or other contaminations.

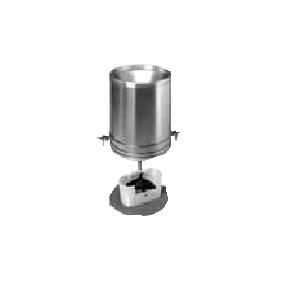

FRA916 Rainfall Sensor Type


● Rainfall sensor according to the tipping scale principle with electronic counting of the table tilts and direct conversion into the amount of rainfall.
● Rainfall sensor with sieve bar for protection against insects or other contaminations.
Technical Data:
Measuring range: 0.2mm/pulse
Resolution: 0.2mm
Capture cross section: 400cm²

Heating : 24 V DC/AC, max. 30 W
Operating range : 0 to +50 °C,
with heating -30 to +50 °C
Cable : 12 m
Connection : Adapter cable with ALMEMO®
connector including supply cable
for heating (length 1.5 m, free
ends) A mains supply unit must
be provided by the user on site.
Material of housing: corrosion-proof metal
Material of tipping scale: weather-resisting plastic
Dimensions: 280mm high, 240mm Ø
Weight: 2.4kg

Types:
FRA916 Rainfall sensor without heating includingALMEMO® connector with 12m cable
FRA916H Rainfall sensor with heating in insulated metal housing incl. ALMEMO® connector with 12m cable

Accessories:
ZB9916AF Push-in/put-up stand with mounting hose
ZB9060K(L) Longer cable, please specify length (L)
