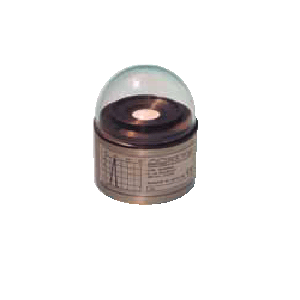

Measuring head in anodized aluminium housing with a plastic dome that is transparent to UV light.
FLA613UVB
UVB RadiationProbe Head Type
● Measuring head in
anodized aluminium housing with a
plastic dome that is transparent to UV light.
● Rain and splash-proof
system, additionally with desiccant to prevent dome from inside condensation.
● Particularly
suitable for outdoor measurements, e.g. in
medical and biological research, weather information and
forecast systems, climatology, agriculture and for general
public information.
Type:
FLA613UVB
Weather-proof measuring head for measuring
the UVB radiation including cable, 1.5 m, and ALMEMO® connector
Technical Data:
Measuring range:
0 to approx. 50μW/cm²
Spectral sensitivity:
215 to 315nm
Maximum spectral sensitivity:
335nm
Signal output:
0V to 2V
Power supply:
+5V to +15V
Mounting:
2 screws M4, in base plate
Cable passage:
downwards
Housing:
anodized aluminium
Diffusor:
PTFE
Dome:
PMMA (transparent to UV)
Cos correction:
error f2 < 3%</font>
Linearity:
< 1%</font>
Absolute error:
< 10%</font>
Residual voltage: (E = 0)
< 10mV</font>
Nominal temperature:
22°C ±2°C
Operating temperature:
-20°C to +60°C
Dimensions:
housing: 55 mm high
dome 40 mm high
diameter: 80 mm
Weight:
approx. 300g
