Independent from ambient temperature through differential temperature measurement.

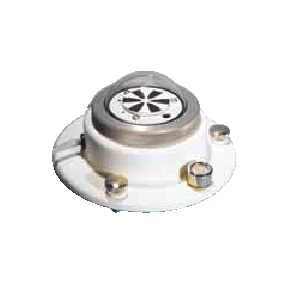

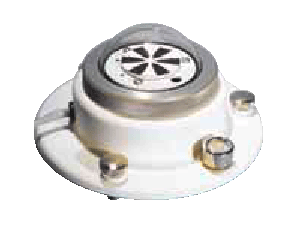

FLA628S Star Pyranometer Type


● Star pyranometer, according to Dirmhirn, for measuring the global radiation, the sky radiation and the short-wave
radiation.
● Independent from ambient temperature through differential temperature measurement.
● Cut precision glass cupola for shielding from external
environmental effects.
● Levelling by 3 setting screws and an integrated bubble.
● Delivery including a factory calibration certificate.
Technical Data:
Measuring range: 0 to 1500W/m²
Resolution: 0.1W/m²
Spectral range: 0.3 to 3μm
Output: approx. 15μV/Wm-²
Impedance: approx. 35Ω
Operative range: -40 to +60°C
Accuracy: cosine effect + azimuth effect +
temperature influence
Cosine effect:
Inclination azimuth effect:
Temperature influence:
< 3% of meas. val. (0 to 80°)<br> < 3% of meas. val.<br> < 1% of meas. val. (?20 to +40°C) </font>
Nominal temperature: 22°C ±2°C
Linearity: <0.5% (0.5 to 1330W/m²)</font>
Stability: <1% of the meas. range per year</font>
Settling time: 25s (t95)
Dimensions: 160mm Ø, 75mm high,
hole circle: 134mm Ø,
holes: 8mm Ø
Weight: 1kg

Type:
FLA628S Star pyranometer including 3m cable with ALMEMO® connector and programmed calibration value

Accessories:
ZB9628SB Shadow belt with stand
