Compact design allows direct plug-on to measuring instruments.

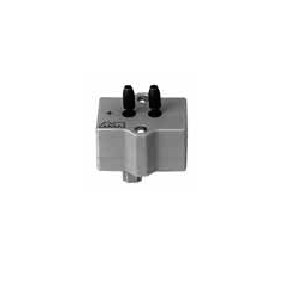

FDA612MA Barometer Module Type


● Precision pressure module for barometric pressure.
● Compact design allows direct plug-on to measuring
instruments.
● High measurement accuracy through piezo-resistive pressure sensor.
● When used with extension cable, also suitable for operation with multi-channel measuring instruments, for positionindifferent measurements and for stationary installation.
Technical Data:
Measuring cell: piezo-resistive
Measuring range: 700 to 1050mbar
(total range 0 to 1050mbar)
Accuracy: ± 0.5%
(typ. ± 0.1%) of final value
Nominal temperature: 22°C ± 3K
Overload capacity: 2-fold measuring range at max.
Air humidity: 10 to 90% non-condensing
Temperature drift: max. 1% of final value
(typ. ± 0.6%)
Dimensions: 37 x 36 x 22mm
Hose connection: Ø 5mm, 12mm long

Type:
FDA612MA Pressure module for
absolute pressure measurements

Accessories:
ZA9060AK1 Extension cable 0,2m
ZA9060VK2 Extension cable 2m
