Capacitive humidity sensor with / without Pt100 temperature sensor
MT8xx6AGx

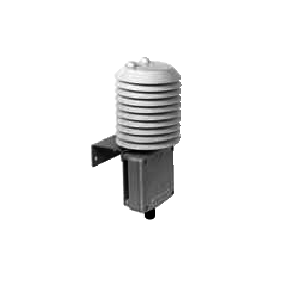

Humidity / temperature transmitter in all-weather
protective housing Type
● Capacitive humidity
sensor with / without Pt100 temperature
sensor
● Stable all-weather
protective housing
● Operating range
-30 to +60 °C / 0 to 90 % r.H.
(non-condensing)
● Designed for
supply voltage 15 to 24 V DC
Technical Data:
Humidity measuring circuit
Sensor:
capacitive thin-film sensor
Measuring range:
5 to 98% r.H.
Accuracy:
±2% r.H. at nominal temperature
Reproducibility:
±1% r.H. at nominal temperature
Nominal temperature:
25°C ±3°C
Temperature measuring circuit
Sensor:
Pt100
Accuracy:
Pt100: IEC 751, class B
Reproducibility:
0.1°C
Types:
Temperature sensor Signal output (corresponds
to 0 to 100 % r.H. / -30 to +70 °C)
MT8616AG2
Without temperature sensor
Output 0 to 10 V
Load RL ≥1 kΩ max. 10 mA
MT8616AG5
Without temperature sensor
Output 0 to 1 V
Load RL ≥1 kΩ max. 10 mA
MT8716AG3
Without temperature sensor
Output 0 to 20 mA
Load RL max. 500 Ω
MT8716AG4
Without temperature sensor
Output 4 to 20 mA
Load RL max. 500 Ω
MT8636AG2
Pt100 temperature sensor
Output 2 x 0 to 10 V
Load RL ≥1 kΩ max. 10 mA
MT8636AG5
Pt100 temperature sensor
Output 2 x 0 to 1 V
Load RL ≥1 kΩ max. 10 mA
MT8736AG3
Pt100 temperature sensor
Output 2 x 0 to 20 mA
Load RL max. 500 Ω
MT8736AG4
Pt100 temperature sensor
Output 2 x 4 to 20 mA
Load RL max. 500 Ω
