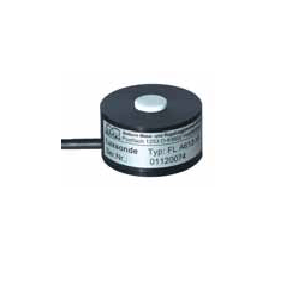

Lux probe for measuring the density of light at work places according to the guideline ASR 7/3.
FLA613VL
Lux Probe Head Type
● Lux probe for measuring the density of light at
work places according to the guideline ASR 7/3.
● Spectral adaptation
approximated to the photometric
valuation function V(λ). The measuring fault caused by
mismatching is less than 5% with respect to sunlight (D65).
● Two measuring
channels for indoor illumination
(high resolution) and ambient light (low resolution).
Technical Data:
Low resolution channel:
0 to 260.00klux
High resolution channel:
0 to 26000lux
Power supply:
+5V
Output voltage:
approx. 10μV/lux
Impedance:
1kΩ
Accuracy:
base accuracy 5%
(of meas. value)
accuracy of calibration 5%
(at 24°C and approx. 3300 lux)
