UV probe for evaluation of the radiation capacity. Two measuring channels with different sensitivity.

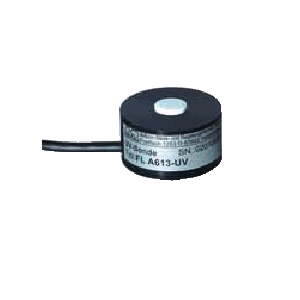

FLA613UV UV Probe Head Type


● UV probe for evaluation of the radiation capacity.
● The spectral evaluation covers the spectral range 250 to 400nm (20% of the peak sensitivity). The peak wavelength is 366nm. The calibration is carried out in W/m2 at 366nm.
● Two measuring channels with different sensitivity.


Technical Data:
Low resolution channel: 0 to 87.00W/m²
High resolution channel: 0 to 26.000W/m²
Power supply: +5V
Output voltage: approx. 10μV / W/m²
Accuracy: base accuracy 5%
(of meas. value)
accuracy of calibration 5%
(at 24°C and approx. 0.500W/m²)
Detection limit: approx. 0.2mW/m2 at 366nm
Nominal temperature: 24°C ±2K
Temperature coefficient: 0.2 %/°C
Operat./storage temperature: 0 to 60°C/-10 to +80°C
Humidity range: 10 to 90% (non-condensing)
Housing: black anodised aluminium
Safety class: IP62
Weight: 50g
Dimensions: height: 19.5mm, diameter:
housing 37mm, diffusor 15mm

Type:
FLA613UV UV meas. probe with ALMEMO® connecting cable 1.5m long incl. factory calibration certificate
