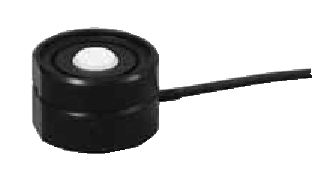

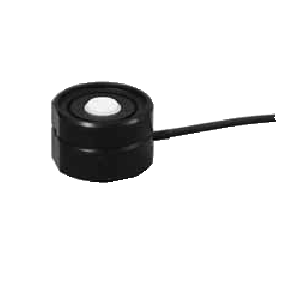

FLA603VLx Lux Probe Head Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

High quality probe head for determining the density of light in lighting engineering or in sunlight
FLA603VLx Lux Probe Head Type


● High quality probe head for determining the density of light in lighting engineering or in sunlight and any place where DIN standards recommend the use of a class B luxmeter.
● Spectral adaptation approximated to the photometric
valuation function V(λ) for photopic vision, class B, better
than 6%.
● Different measuring channels with different sensitivity.


Technical Data:
Measuring range: FLA603VL2: 0.05 lx to 12500 lx
FLA603VL4: 1 lx to 250000 lx
Smallest resolution: FLA603VL2: 0.01 lx
FLA603VL4: 1 lx
Sensitivity: approx. 20pA/lx
Spectral adaptation: approxim. to photometric valuat. function V(λ) for photopic vision, class B, better than 6%
Max. cos deviation: class B, < 3%</font>
Cos diffusor: diameter 7mm
Nominal temperature: 24°C ±2K
Operat./storage temperature: 0 to 60°C/-10 to +80°C
Humidity range: 10 to 90% (non-condensing)
Dimensions: Ø 37mm, height 20mm

Type:
Lux probe head, DIN quality class B with ALMEMO® connecting cable 2m long, incl. factory calibration certificate with calibration in lx
FLA603VL2 for indoor lighting (3 measuring channels)
FLA603VL4 for ambient light (2 measuring channels)
