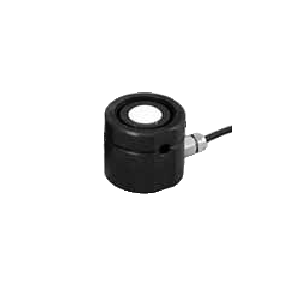

High quality probe head for precise determination of UVA radiation in the wave length range from 315 to 400nm.
FLA603UV12/14 UVA
Probe Head Type
● High quality probe
head for precise determination of UVA radiation in the wave length range
from 315 to 400nm.
● Measurement
geometries with cosine diffusor instead of simple diffusing screen for highest
quality requirements.
● Three measuring
channels with different sensitivity.
Technical Data:
Measuring range:
FLA603UV12:
0.00002 mW/cm2 to 5 mW/cm²
FLA603UV14:
0.0004 to 100 mW/cm²
Smallest resolution:
FLA603UV12: 20 nW/cm²
FLA603UV14: 100 nW/cm²
Sensitivity:
approx. 50 nA/(mW/cm²)
Spectral sensitivity:
315 to 400nm
Max. cos deviation:
< 5%</font>
Cos diffusor:
diameter 15mm
Nominal temperature:
24°C ±2K
Operat./storage temperature:
0 to 60°C/-10 to +80°C
Humidity range:
10 to 90% (non-condensing)
Dimensions:
Ø 37mm, height 32mm
Type:
Probe head for
measuring UVA radiation intensity
with ALMEMO® connecting cable 2m long
incl. factory calibration certificate with calibration in mW/cm²
FLA603UV12
for examinations
in industrial medicine
FLA603UV14
for measurements
in industrial plants
