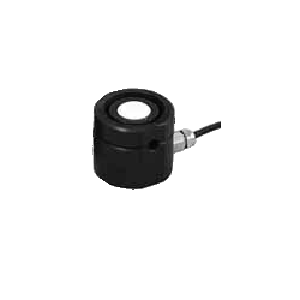

FLA603UV22/24 UVA Probe Head Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

High quality probe head for precise determination of UVA radiation in the wave length range from 320 to 400nm.
FLA603UV22/24 UVA Probe Head Type


● High quality probe head for precise determination of
UVA radiation in the wave length range from 320 to 400nm.
● Measurement geometries with cosine diffusor instead
of simple diffusing screen for highest quality requirements.
● Three measuring channels with different sensitivity.


Technical Data:
Measuring range: FLA603UV22:
0.00002 to 5 mW/cm²
FLA603UV24:
0.0004 to 100 mW/cm²
Smallest resolution: FLA603UV22: 10 nW/cm²
FLA603UV24: 100 nW/cm²
Sensitivity: approx. 50 nA/(mW/cm²)
Spectral sensitivity: 320 to 400nm
Max. cos deviation: < 5%</font>
Cos diffusor: diameter 15mm
Nominal temperature: 24°C ±2K
Operat./storage temperature: 0 to 60°C/-10 to +80°C
Humidity range: 10 to 90% (non-condensing)
Dimensions: Ø 37mm, height 32mm

Type:
 Probe head for measuring UVA radiation intensity
with ALMEMO® connecting cable 2m long
incl. factory calibration certificate with calibration in mW/cm²
FLA603UV22 for examinations in medical therapy
FLA603UV24 for industrial measurements of the UV radiation hardening
