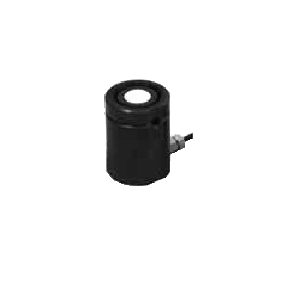

Radiometric Probe Head Type, Three measuring channels with different sensitivity.
FLA603RW4 Radiometric
Probe Head Type
● High quality radiometric
probe head for precise
determination of the radiation intensity in the visible
wavelength range from 400 to 800nm.
● Measurement
geometries with cosine diffusor instead of simple diffusing screen for highest
quality requirements.
● Three measuring
channels with different sensitivity.
Technical Data:
Measuring range:
0.00004 to 10 mW/cm²
Resolution:
10 nW/cm²
Sensitivity:
approx. 500nA/(mW/cm²)
Spectral sensitivity:
400 to 800nm
Max. cos deviation:
< 5%</font>
Cos diffusor:
diameter 15mm
Dimensions:
diameter 37mm,height 50mm
Type:
Radiometric probe head with ALMEMO® connecting
cable 2m long incl. factory calibration certificate with calibration
in mW/cm²
FLA603RW4
for evaluation of LED diodes and lasers
