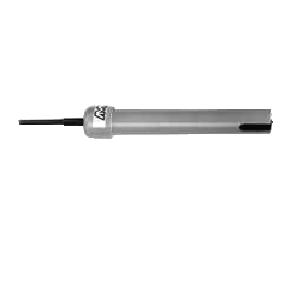

FYA641LF Conductivity Probe Type
|
| Concentrated waste water, aggressive waters, general aqueous and partly aqueous solutions, beer, etc.. |
FYA641LF Conductivity
Probe Type

Applications:
Concentrated waste water, aggressive
waters, general aqueous and partly aqueous solutions, beer, emulsions, electroplating,
waters, concentrated acidic and alkaline solutions, corrosive acids and
alkaline solutions, lacquers and paints, substances containing
protein, soaps, detergents, suspensions, titrations in organic substances,
environmental analysis.
Accessories:
| ZB96LFRL |
Reference solution 2.77mS/cm at 25°C
0.02mol KCl, 250ml |
|
| Technical Data: |
| Measuring range: |
0.01 to 20mS/cm |
| Temperature sensor: |
NTC, type N (10k at 25°C) |
| Temperature compensation: |
0 to +70°C, automatic |
| Compensation coefficient: |
1.9 linear |
| Cell constant: |
approx. 1cm-¹ |
| Electrode material: |
special coal |
| Accuracy: |
0.01 to 5mS/cm:
± 1% of meas. val. + 0.05mS
5 to 20mS/cm:
± 2% of meas. val. + 0.05mS |
| Nominal temperature: |
25°C ± 3°C |
| Operating temperature: |
-5 to 70°C |
| Minimum insertion depth: |
30mm |
| Shaft material: |
PVC - C |
| Shaft length/shaft diameter: |
120mm/20mm |
| Cable length: |
1.5m |
| Power supply: |
8 to 12V through meas. instr. |
| Current consumption: |
approx. 3mA |
| Type: |
| FYA641LF |
Active conductivity probe 0 … 20mS/cm
with automatic temperature compensation |
|
| |
