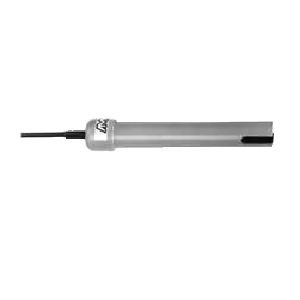

FYA641LF2 Conductivity Probe Type
|
| Low-salt waste water, general aqueous and partly aqueous solutions, fish tanks, emulsions, etc.. |
FYA641LF2 Conductivity
Probe Type

Applications:
Low-salt waste water, general aqueous
and partly aqueous solutions, fish tanks, emulsions, desalting/ion exchanger,
beverages, waters, cold/boiler feed water, lacquers and paints, milk, samples
with low ionic strength, substances containing protein, purest water, soaps,
detergents, suspensions, drinking water, environmental analysis.
Accessories:
| ZB96LFRL2 |
Reference solution 147μS/cm at 25°C0.001mol
KCl, 250ml |
|
| Technical Data: |
| Measuring range: |
1 to 200μS/cm |
| Temperature sensor: |
NTC, type N (10k at 25°C) |
| Temperature compensation: |
0 to +70°C, automatic |
| Compensation coefficient: |
1.9 linear |
| Cell constant: |
approx. 1cm-¹ |
| Electrode material: |
special coal |
| Accuracy: |
± 2% of meas. val. + 0.5μS |
| Nominal temperature: |
25°C ± 3°C |
| Operating temperature: |
-5 to 70°C |
| Minimum insertion depth: |
30mm |
| Shaft material: |
PVC - C |
| Shaft length/Shaft diameter: |
120mm/20mm |
| Cable length: |
1.5m |
| Power supply: |
8 to 12V through meas. instr. |
| Current consumption: |
approx. 3mA |
| Type: |
| FYA641LF2 |
Active conductivity probe 0 … 200μS/cm
with automatic temperature compensation |
|
| |
