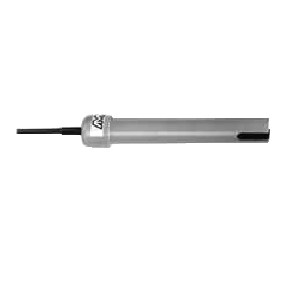

FYA641LF3 Conductivity Probe Type
|
| Concentrated waste water, aggressive waters, general aqueous and partly aqueous solutions, beer, etc.. |
FYA641LF3 Conductivity
Probe Type

Applications:
Concentrated waste water, aggressive
waters, general aqueous and partly aqueous solutions, beer, emulsions, electroplating,
waters, concentrated acid and alkaline solutions, corrosive acids and alkaline
solutions, lacquers and paints, substances containing protein, soaps, detergents,
suspensions, titrations in organic substances, environmental analysis
Accessories:
| ZB96LFRL3 |
Reference solution 111.8mS/cm at 25°C
1mol KCl, 250ml |
|
| Technical Data: |
| Measuring range: |
0 to 200 mS/cm |
| Temperature sensor: |
NTC, type N (10k at 25°C) |
| Cell constant: |
approx. 1cm-¹ |
| Electrode: |
4 electrodes, special coal |
| Accuracy: |
1 mS/cm ± 1.5% of meas. val. |
| Nominal temperature: |
25°C ± 3°C |
| Operating temperature: |
0 to 70°C |
| Minimum insertion depth: |
30mm |
| Shaft material: |
PVC - C |
| Shaft length: |
145mm |
| Shaft diameter: |
20mm |
| Cable length: |
1.5m |
| Power supply: |
8 to 12V through meas. instr. |
| Current consumption: |
approx. 15mA |
| Type: |
| FYA641LF3 |
Conductivity probe 0 … 200mS/cm without
temp. compensation |
|
| |
