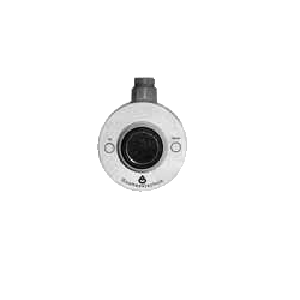

FYA600CO Carbon Monoxide Probe Type

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Applications: For measurement, control and warnings in garages, for monitoring the air quality
FYA600CO Carbon Monoxide Probe Type


● Applications:
For measurement, control and warnings in garages, for
monitoring the air quality with respect to the maximum
allowable concentration at work places (MAC value, e.g. in laboratories and engine test benches), for monitoring the outside air or protected air systems in house shelters or large shelter buildings.
● Particularly suitable for long-term measurements of the carbon monoxide concentration in air, in a range from 0 … 150ppm to 0 … 5vol%.

Type:
FYA600CO Carbon monoxide sensor including connecting cable 1.5m long for CO measurements in air


Technical Data:
Gas: CO
Measuring principle: electrochemical reaction
Measuring range: 0 … 150 ppm, 0 … 300 ppm,
0 … 5%
Zero point error: < 10 ppm CO</font>
Gauge reading balance: < 3 ppm CO</font>
Error of meas. value: ±3% of full scale value
Zero point drift: < 2% (1 year)</font>
Reproducibility: < 2% (1 year)</font>
Linearity: < 2% of full scale value</font>
Settling time t90: < 60s</font>
Transverse sensitivity: < 2% by integrated filter</font>
Output: 4 ... 20 mA on ALMEMO® connector
Supply voltage: from the ALMEMO® measuring
instrument
Ambient temperature: -10 to +40°C, sensor temperature
compensated in range
Air humidity: 0 to 90% non-condensing
Life span of the meas. cell: approx. 2 years
Dimensions of meas. head: Ø 80mm, height 80mm
Weight: 600g
Connecting cable: 1.5m, with ALMEMO® connector
