Measurements in air conditioning systems, air purifiers, oxygen rectifiers, greenhouses and oxygen incubators.

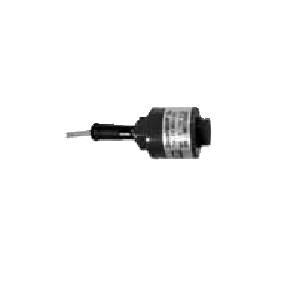

FYA600O2 Oxygen
Probe Type
● Examples from the
range of applications:
Measurements in air conditioning systems, air purifiers, oxygen rectifiers,
greenhouses and oxygen incubators.
● Approved by
PTB and approved for exhaust emission measurements in the automotive industry.
▒ A correction value can be
stored in the ALMEMO® connector plug to compensate for the natural ageing
of the probes, so optimum output characteristics can be ensured for the
whole operating
Type:
FYA600O2
Oxygen sensor
including connecting cable 1.5m long for O2 measurements in air
For Reordering:
FY9600O2
Oxygen sensor
ZA9600AKO2
ALMEMO® connecting cable
Technical Data:
Gas:
O₂
Measuring principle:
electrochemical cell
Measuring range:
1 … 100% O₂, linear
Accuracy :
1% O₂
Resolution :
0.01% O₂
Response time:
< 40s</font>
Signal drift:
< 2% signal/month<br>
(typ. < 5% over operating life)</font>
Offset voltage at 20°C:
< 20μV</font>
Operating life:
2 years, if operated in 20.9% O₂
Nominal conditions:
20°C, 50% rH, 1013mbar
Temperature range:
-20 to +50°C
Temperature compensation:
effective in range -10 to +40°C
Pressure range:
atm. pressure ±10%
Relative humidity:
0 to 99% non-condensing
Connecting cable:
adapter cable 1.5m long
Dimensions:
H 43mm x Ø 29.3mm
