Each ozone sensor is supplied with a calibration certificate.As a result of the high long-term stability, only small maintenance costs.

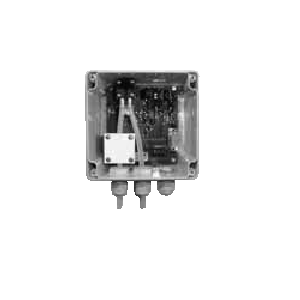

FYA600O3
Ozone Measuring Transducer Type
● Suitable for many
measuring tasks where ozone
measurements for control purposes were too expensive to date, e.g. for leakage
tests in industry, for protection of health and safety standards at work,
for mobile air quality measurements etc.
● Each ozone
sensor is supplied with a calibration certificate.
● As a result
of the high long-term stability, only small
maintenance costs.
Type:
FYA600O3
Ozone sensor including connecting cable
1.5m long for O3 measurements in air
Option:
OY9600O3D
Pump in continuous operation
(fixed factory setting)
ZB9600O3S
Maintenance set :
new electro-chemical measuring cell,
pump replacement,
readjustment, including calibration certificate
Technical Data:
Gas:
O₃ (ozone)
Measuring principle:
electrochemical
three-electrode sensor
Measuring range:
0 … 300 ppb
Accuracy:
typically 5% of final value under
nominal conditions (for
intermittent operation)
Long term accuracy:
after 12 months under nominal
conditions typically 5% of final
value (for intermittent operation)
Exposure period :
until specification is reached, at
least 2 hours (at 200 ppb); for a
prolonged period the device was
in an ozone-free environment
Meas. interval:
pump on: 5min
pump off: 10min
Pump flow rate:
500ml/min
Signal output:
0 … 2V,
load resistance > 100kΩ
Power supply:
6 to 14V, stable
Current consumption:
pump on : 50 mA, typical
pump off : 25 mA, typical
pump blocked : 180 mA, typical
Overload capacity:
1 ppm
Expected useful life :
Sensor, typically 24 months
(at 20 °C) pump, typically 6000 hours
Nominal conditions:
20°C, 30% r.H., 1013 mbar,
no contaminations of the contact surfaces
Operating range :
-20 to +40 °C / 30 to 80 % RH
Storage temperature:
0 to 20°C, at 30 to 80% RH non-condensing
Dimensions:
L 180mm x W 125mm x H 90mm
Connecting cable:
1.5m long with ALMEMO® connector programmed in ppb
