J009-049 DUAL SHAFT MIXER

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS    MINUS    개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Versatile dual shaft design offers high-speed and high-torque mixing for larger volumes of UV inks and coatings.

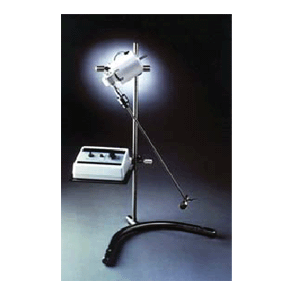

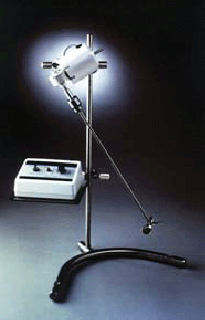

DUAL SHAFT MIXER

Versatile dual shaft design offers high-speed and high-torque mixing for larger volumes of UV inks and coatings. Direct-drive shaft generates 50-5000 rpm for high speed, low-viscosity mixing. Gear-reduction shaft provides high
140"/oz torque from 3-250 rpm for high viscosity mixing needs.


Rugged, permanent magnet TENV gear motor uses permanently lubricated ball bearings for instant start. Gearreduction ratio is rated at 20:1. Equipped with solid-state speed controller with 100:1 adjustment range. Features
separate forward/off/reverse and speed controls. Maintains consistent speed under changing loads. Accepts a wide assortment of universal stainless steel propellers, mixing blades and stirring shafts with 3/8" and 5/16" diameter shafts. Stand and heavy-duty clamp also available.

COMPLETE WITH:
● 6"L mounting rod
● Jacobs-style chuck with key
● 6 ft 3-wire cord with grounded plug

FEATURES:
● Speed Range: Direct drive: 50-5000 rpm; Gear: 3-250 rpm
● Max Torque: Direct drive: 7"/oz; 140"/oz
● Motor: 1/25 hp
● Shaft Size: 3/8"-5/16"
● Dimensions: Motor: 5-3/4"H x 3-1/2"D
Controller: 7"W x 3-3/16"H x 4-7/8"D
● Power: 115V AC, 50/60 Hz
● Weight: 7 lbs (3.2 kg)
● For mixing viscosities of up to 1,000 cPs (up to 1 gallon)

OPTIONS:
● Corrosion resistant, cast steel support stand with 28"H x 3/8" rod
● Compatible with a wide assortment of universal accessories.

Part Number Description Units
J009-049 DUAL SHAFT MIXER EACH
J009-052 SUPPORT STAND EACH
J009-055A DOUBLE CLAMP HOLDER EACH
