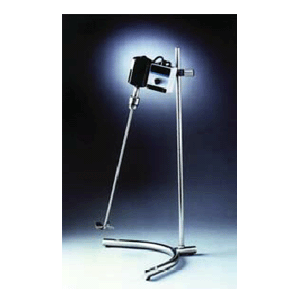

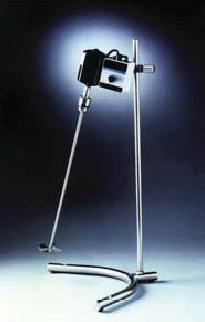

Laboratory or ink room general purpose mixer for low viscosity fluids.
GENERAL PURPOSE LOW VISCOSITY MIXER

Laboratory or ink room general purpose mixer for low viscosity fluids. Fuse-protected, direct drive features solidstate speed controller (20:1 speed range) for variable settings of 500-10,000 rpm. Potentiometer controls on/off and speed settings for single direction mixing. Stand sold separately.

COMPLETE WITH:

● 12"L x 3/8" diameter shaft
● 1-1/2" diameter stainless steel propeller
● 6"L mounting rod,
● Jacobs-style chuck with key
● 6 ft 3-wire cord with grounded plug

FEATURES:
● Speed Range: 500-10,000 rpm
● Max Torque: 9.5"/oz (up to 5,000 rpm)
● Motor: 1/20 hp
● Shaft Size: 3/8"-5/16"
● Dimensions: 5-5/8"W x 4-1/4"H x 3-3/8"D
● Power: 115V AC, 50/60 Hz
● Weight: 5 lbs (2.3 kg)
 ● For mixing viscosities up to 100 cPs (up to 1 gallon)

OPTIONS:

● Corrosion-resistant, cast steel support stand with 28"H x 3/8" rod
● Wide assortment of universal stainless steel propellers, mixing blades and stirring shafts

Part Number Description Units
J009-050 LOW VISCOSITY MIXER EACH
J009-052 SUPPORT STAND EACH
J009-055A DOUBLE CLAMP HOLDER EACH
