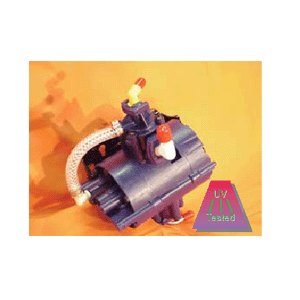

The CON-TROL-CURE® Transfer Pump III transports UV/EB inks and coatings at a flow rate of 0-1.8 GPM.
TRANSFER PUMP III
The CON-TROL-CURE® Transfer Pump III transports UV/EB inks and coatings
at a flow rate of 0-1.8 GPM. This air-driven, double diaphragm pump economizes
operation by using cubic inch air consumption rather than cubic ft. Because
of its small size, the pump requires less solvent for thorough cleaning.
Offers self-priming, continuous flow without worry of electrical breakdowns
or stalling. Minimal maintenance with few moving parts, high corrosion and
wear resistance of wetted parts. Easy to clean stainless steel metal components.
SPECIFICATIONS:
● Kit Includes:
Air Regulator and two 6 ft lengths of
UV grade tubing
● Materials of Construction:
Polypropylene, EPDM, 304 stainless steel
● Operating Pressure Range:
10-60 PSI
● Overall Dimensions:
7"L x 6"W x 4"H
● Standard Fittings:
3/8" inlet and outlet stainless steel
1/4" air inlet nylon elbow fitting
● Suction lift (wet):
25" Hg/min
Transfer Pump III only. A low priced basic version of Transfer
Pump III. So inexpensive, it can be used as a disposable pump! Regulator,
drum/pump hanger, and hoses not included.
Transfer Pump III Repair Kit. The CON-TROL-CURE® Transfer Pump III Repair
Kit contains parts and instructions necessary for the replacement of the
pump diaphragm. This repair kit includes 2 piston/diaphragm assemblies,
valves and O-rings.
IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility
between ink/coating chemistry and this pump's wet components.
Part Number
Description
Units
J004-061
TRANSFER PUMP 3 (PUMP ONLY)
EACH
J004-041
TRANSFER PUMP 3 KIT
EACH
J004-119
TRANSFER PUMP 3 REPAIR KIT EPDM
EACH
