Similar in size and capabilities to the popular Transfer Pump III
TRANSFER
PUMP 3V

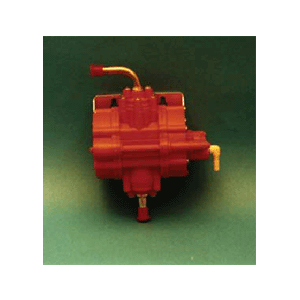

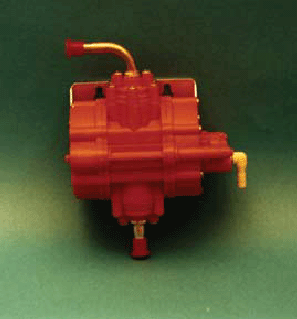

Similar in size and capabilities to the popular Transfer Pump III, the CON-TROL-CURE®
Transfer Pump 3V utilizes components made of Viton® for greater resistance
to most solvents and inks. Features include .6 GPM flow rate, easy cleaning,
and universal mounting.
SPECIFICATIONS:
● Kit Includes:
Air Regulator and 2-6 ft lengths of UV
grade tubing
● Materials of Construction:
Viton®, EPDM, 304 stainless steel
● Operating Pressure Range:
30-60 PSI
● Overall Dimensions:
7"L x 6"W x 4"H
● Standard Fittings:
3/8" inlet and outlet stainless steel
1/4" air inlet nylon elbow fitting
● Suction Lift (wet):
25" Hg/min
Transfer Pump 3V Only. A low priced basic
version of Transfer Pump 3V featuring solvent-resistant components made
of Viton®. Regulator, drum/pump hanger, and hoses not included.
Transfer Pump 3V Repair Kit. The CON-TROL-CURE® Transfer Pump 3V Repair
Kit contains parts and instructions necessary for the replacement of the
pump diaphragms. This repair kit includes 2 piston/diaphragm assemblies,
valves and O-rings.
IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility
between ink/coating chemistry and this pump's wet components.
Part Number
Description
Units
J004-072
TRANSFER PUMP 3V(PUMP ONLY)
EACH
J004-071
TRANSFER PUMP 3V KIT
EACH
J004-073
TRANSFER PUMP 3V REPAIR KIT VITON®
EACH
