J004-002 MINI PERISTALTIC PUMP

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

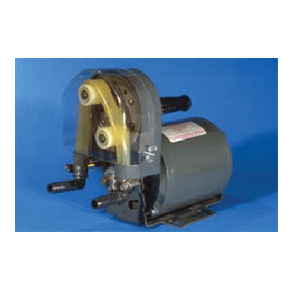

The CON-TROL-CURE® Mini Peristaltic Pump is ideal for small volume applications of medium viscosity inks
MINI PERISTALTIC PUMP

The CON-TROL-CURE® Mini Peristaltic Pump is ideal for
small volume applications of medium viscosity inks and coatings. It provides a sure method of pumping materials without contamination. 2 rollers on a ball bearing pulley rotate at approximately 700 rpm, providing 1400 pumping impulses/
minute. Materials are squeezed through the tubing at a flow rate of 2 GPM. The pump is selfpriming, with 1/2" I.D. hose connections. Lightweight and portable, weighing only 20 lbs.

FEATURES:
● Excellent chemical resistance
● Pumps a wide variety of chemicals
● Tubing and nylon fittings are the only parts of the unit in contact with materials being pumped
● Self-priming up to 15 ft

SPECIFICATIONS:
● Tubing Size: 1/2" I.D. (12.7 mm)
● Electric motor: 1/4 HP, 115V AC, 60 cycle,
drip proof, resilient mounted,
48 NEMA frame, close-coupled to pump
● Dimensions: 10"L x 5-1/2"W x 9-1/2"H
● Approximate Weight: 20 lbs
 ● Chemically resistant vinyl tubing conveys material being pumped
 ● Abrasion resistant nylon tube fittings for 1/2" I.D., external connections
 ● Equipped with handle for easy carrying

Flow and Head Capacities: Total Head PSI
Lbs/Square Inch Ft/Water GPM
0 0 2.2
5 12 2.1
10 23 2.0
15 35 1.9
20 46 1.7
25 58 1.4

Part Number Description Units
J004-002 MINI PERISTALTIC PUMP EACH
