When pneumatic pumps are not an option, these electric-powered diaphragm pumps offer automatic demand control

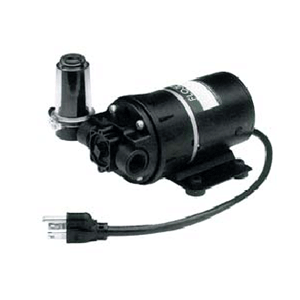

DUPLEX DIAPHRAGM ELECTRIC PUMPS

When pneumatic pumps are not an option, these electric-powered diaphragm pumps offer automatic demand control and operate only when liquid flow is required.

Duplex diaphragm design eliminates troublesome shaft seals. Excellent self-priming capability allows pump positioning above liquid. Corrosion-resistant polypropylene construction puts no metal parts in contact with pumped liquid. Handles small foreign particles such as resin, dust, dirt, and so forth. Recommended use with in-line strainer.

Must be properly grounded to prevent electrical shock. Supplied with grounding conductor and grounding-type attachment plug.

SPECIFICATIONS:
● Pump Design: Duplex diaphragm
● Materials: Housing: Reinforced polypropylene
Elastomers: Santoprene® (UV inks), Viton® (multipurpose)
● Pressure Switch: Off @ 60 PSI (4.1 bar)
On @ 40 PSI (2.8 bar)
● Temperature: Minimum = 45˚F (7˚C)
Maximum = 160˚F (71˚C)
● Ports: 3/8 NP
● Motor: 115V AC, 50/60Hz cycle
● Current: .55 A (maximum)
● Weight: 4 lbs (1.8 kg)
● Flow Rate: 2 GPM (7.5 L/min)

IMPORTANT: Not intended for high flash point fluids (i.e. solvents and such).

Part Number Description Units
J004-096 DUPLEX DIAPHRAGM ELECTRIC 3/8" VITON® EACH
J004-095 DUPLEX DIAPHRAGM ELECTRIC 3/8" SANTOPRENE® EACH
