J004-103 1/4” POLY-TEFLON® DOUBLE DIAPHRAGM PUMP

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS    MINUS    개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

Durable, easy to maintain, CON-TROL-CURE® 1/4" Polypropylene/Teflon® Double Diaphragm Pump handles tough

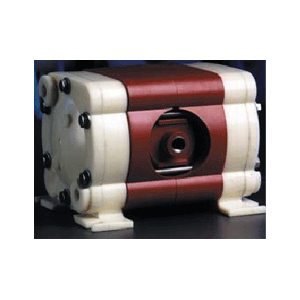

1/4” POLY-TEFLON® DOUBLE DIAPHRAGM PUMP


Durable, easy to maintain, CON-TROL-CURE® 1/4" Polypropylene/Teflon® Double Diaphragm Pump handles tough,
heavy viscosity fluids. Polypropylene construction and Teflon® seals offer resistance to solvents, UV inks and coatings. Pump features leak-free, non-stalling operation, is fully self-priming up to 17 ft. vertical, and can be mounted in any operating position. Can be run dry without damage.

SPECIFICATIONS:
● Wet Components: Teflon®
● Capacity: Adjustable 0-4.3 GPM (16.3 L/min)
● Operating Temperature: 150ºF (66ºC)
● Max. Air Pressure: 100 PSI (6.8 bar)
● Maximum Solids: Up to 1/16"
● Air Inlet/Outlet: 1/4" NPSF Female
● Fluid Inlet/Discharge: 1/4" NPSF

1/4" Polypropylene/Teflon® Double Diaphragm Pump Drum Kit. This drum pump kit includes the double diaphragm pump, 40" suction tube and bung adaptor with 2" NPT straight threads.

1/4" Polypropylene/Teflon® Double Diaphragm Pump Repair Kit. This repair kit contains 2 diaphragms, 4 gaskets, and O-rings.

IMPORTANT NOTE: Check with ink or coating manufacturer to ensure compatibility between ink/coating chemistry and this pump's wet components.

Part Number Description Units
J004-103 POLY/TEFLON® DOUBLE DIAPHRAGM PUMP 1/4" EACH
J004-103B POLY/TEFLON® DD PUMP 1/4” DRUM KIT EACH
J004-118 POLY/TEFLON® DD PUMP 1/4" REPAIR KIT EACH
