J004-051 DOUBLE DIAPHRAGM 1/4” PUMP

시중가격 : 원
판매가격  : 원
포인트 : 점
수량 :
  PLUS   MINUS   개
■ 회원가입을 하시면 할인된가격을 보실수 있습니다.
■ 모든가격은부가세별도 입니다.
■ 회원이 되시면 가격변동정보, 신제품, 특판제품, 기술정보등 다양한
뉴스정보를 보내드립니다.
■ 30만원미만은 택배비 3,000원(착불)입니다.
■ 카드결재시 세금계산서 발행 불가합니다.
■ 배송은 평균 2~3일정도 예상됩니다.

상세페이지를 마이피플로 보내기 - 웹용 상세페이지를 twitter로 보내기 상세페이지를 facebook으로 보내기 상세페이지를 Me2Day로 보내기

It has a maximum weight of 4.1 lbs with a maximum discharge pressure of 100 PSI.

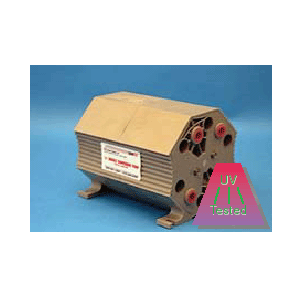

DOUBLE DIAPHRAGM 1/4” PUMP

The CON-TROL-CURE® Double Diaphragm 1/4" Polypropylene Pump is the most recent addition to the line of CON-TROL-CURE® pumps guaranteed to work with UV inks and coatings. The Double Diaphragm 1/4" Pump transports 4.6 GPM with 20+ ft suction from bucket to ink delivery tray, making it ideal for extended, continual use. It has a maximum weight of 4.1 lbs with a maximum discharge pressure of 100 PSI. The single inlet/outlet polypropylene pump is constructed with stainless steel hardware. With a 1/4" piping capacity, it can be plumbed in any of 4 fluid inlet/outlet configurations. Mounts in any position: upside down, sideways, right-side-up, 360° on all 3 axes - all without affecting performance. The CON-TROL-CURE® Double Diaphragm 1/4" Pump has an air motor design that cannot stall and will start up or shut off after any interval or length of time.

1/4" Pump Rebuild Kit. This kit contains parts and instructions necessary for the replacement of most components of the CON-TROLCURE® Double Diaphragm 1/4" Pump. The kit includes diaphragm, back-up ring, seal, disc, spring stop, spool assembly, U-cup, and Orings in a variety of sizes. 1/4" Pump Air Valve Kit also available.

Part Number Description Units
J004-051 DOUBLE DIAPHRAGM PUMP 1/4" EACH
J004-060 1/4" PUMP REBUILD KIT EACH
